C4 Lite

Designed with simplicity in mind, C4 aluminium panels are a fully recyclable option for dry freight vehicle applications.

The C4 is the optimal balance of strength and weight and is the shutter of choice for most fleet operators.

Featuring a host of heavy-duty components, the C4 panels deliver maximum strength with proven low maintenance. Nylon rollers with stainless steel shafts are standard and Zytel roller holders and top closure bracket serve to keep the shutter operation smooth and quiet.  With the option of a powder coated finish the C4 maintains its aesthetic appearance throughout its operational life.

BROCHURE
TECHNICAL DRAWINGS
FITTING
MAINTENANCE
ORDER FORM

    • 1.8mm thick centrally reinforced aluminium panels

    • EN12642 (XL) certified to 22.5 tonne payload

    • Zytel top closure bracket and roller holders

    • 50mm diameter sealed nylon rollers with stainless steel shaft

    • Maximum security lock as standard

    • Heavy duty aluminium bottom seal carrier with four tang seal

    • Single or twin spring balancer

    • Integral extruded aluminium continuous hinge

    • Approximately 15% lighter than a wooden continuous hinge door

    • Smooth/quiet operation

    • Fully recyclable panels

    • Developed to resist internal impact to a higher degree than standard wood

    • Easily assembled/disassembled clip together panels

    • Easy change rollers

    • Designed to maintain ease of use throughout its operating life

    • Full panel coverage powder coat to any RAL colour

    • Choice of locks to suit your security requirements

    • Electric or pneumatic operation

  • Metal latch with hook and lever mechanism

    Maxi Lock

  • Two black power cords with silver connectors on a white surface.

    Single Spring Balancer

  • Two black metal brackets with silver rods and white plastic end caps, mounted on white bases.

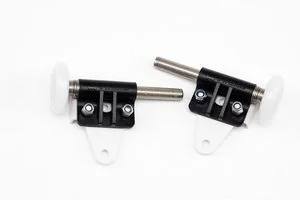

    Anti Lozenge Brackets & Zytel Roller Holder

  • Two metal brackets with multiple holes for mounting.

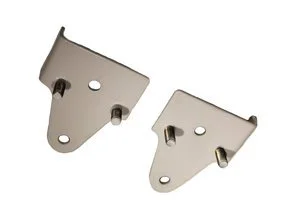

    Anti Lozenge Brackets

    Powder Coated Stainless Steel

  • Metal hinge with a cylindrical pin and mounting holes.

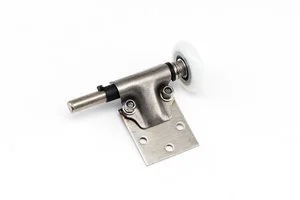

    Bottom Roller bracket & Holder

  • Metal track or rail, possibly a drawer slide or rail system component.

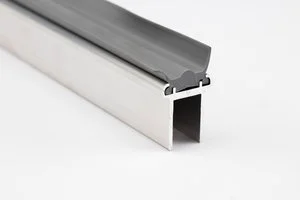

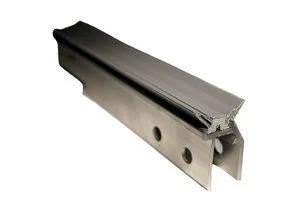

    Type 77/Maxi Bottom Seal Carrier & Seal

  • Black metal phone or device holder with a adjustable arm

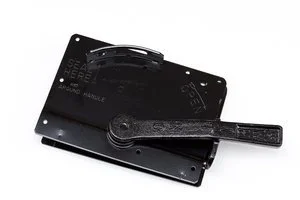

    Type 70 Lock

  • A black stapler with a metal mechanism and plastic body.

    Type 77 Lock

  • Two black carbon fiber bicycle handlebars with green and red accent rings on a white background.

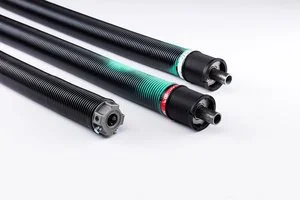

    Optional Twin Spring Balancer

  • Close-up of a metal gutter with a black plastic cover

    Type 70 Bottom Seal Carrier & Seal

  • Metal brace or hinge with multiple holes for mounting

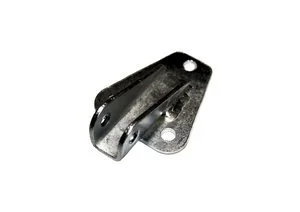

    Cable Anchor Bracket

  • Metal bracket with a U-shaped channel and side flanges

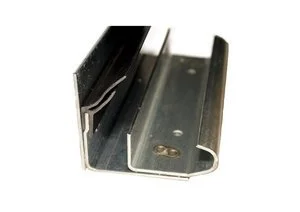

    Mounting Angle, Side Seal & Track Assembly

  • Metal mounting bracket with holes on each end

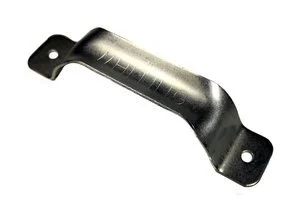

    Grab Handle

  • A small device with a white circular front and a black handle, possibly a skincare or beauty tool.

    Nylon Roller With Stainless Steel Shaft

  • A black metal latch with a silver pin and two gold-colored nuts mounted on a black metal bracket.

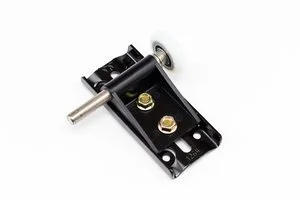

    Top Closure Bracket With Zytel Slider

  • White plastic conduit with a metal cutting blade.

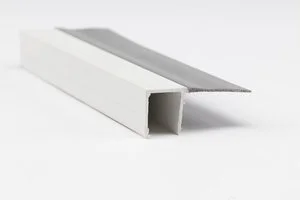

    Top Seal Capping
