ColdSaver

The ColdSaver is a continuous hinge, insulated roller shutter door. Designed with safety in mind, it is one of the safest insulated doors to install, operate and repair.

Its robust strength both in design and technology means it is ideal for use in busy distribution centres. It is also extremely low maintenance, earning it the nickname of the ‘fit and forget' shutter.

BROCHURE
TECHNICAL DRAWING
FITTING
MAINTENANCE
ORDER FORM

    • Inner and outer 1.8mm extruded aluminium panels incorporating an integrated continuous hinge

    • 60mm overall thickness

    • Certified to EN12642 (XL rating)

    • Anti-finger trap profile

    • Polyurethane (CFC free) foam insulation

    • All stainless steel internal door hardware

    • Polyester powder coating to any standard RAL colour

    • Increased panel strength and longevity due to specially designed strengthening wishbones which eliminates panel delamination and reduces bowing

    • Enclosed spring balancer reduces the risk of load contamination from rotating torsion springs

    • Dual point of contact on all seals ensures maximum thermal performance

    • Long life sealed steel rollers with noise reduction system for urban operation

    • Twin spring balancer provides added reliability and independent lifting capabilities for each cable

    • Suitable for fitment to a body requiring ATP class ‘C’ certification

    • Built for safety

    • Durable structure designed for longevity and to withstand a harsh transport environment

    • Unique design which increases panel strength

    • Simple to install and operate

    • Internal safety release

    • Electric or pneumatic operation

    • Choice of locks available to suit your security requirements

  • White aluminum cable raceway with open slot for wires, lying on a white surface.

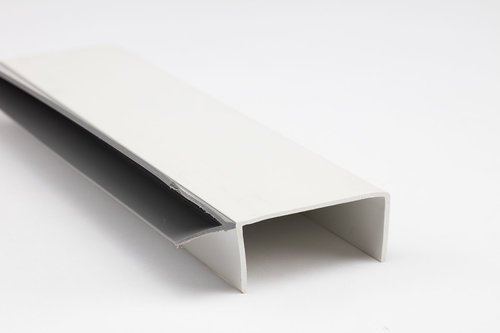

    Top Capping & Seal

  • A circular saw with a metal blade guard, a black handle, and a silver blade arm.

    Type 75 10 Lock

  • A black metal hitch backing plate with a lever and mounting arm

    Type 77 Lock

  • A metal firearm magazine with multiple holes and a slide lock.

    Top Closure Arm

  • Metal door latch with a roller and mounting plate

    Roller Holder, Sleeve & Roller

  • Close-up of a metal channel or bracket with mounting holes.

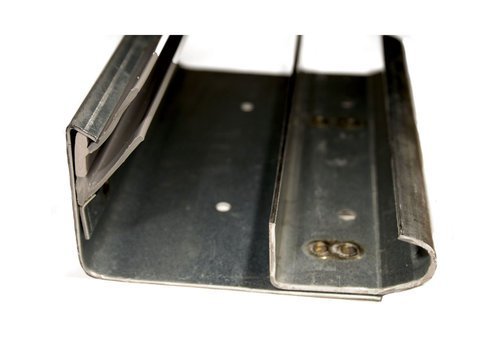

    Insulated Track

  • Industrial aluminum extrusion with black and silver coloring and a V-shaped channel

    Insulated Bottom Seal

  • A metal drill bit with a spiral design.

    Enclosed 1776 Balancer

  • Metal bracket with a mounting hole and a cylindrical component attached.

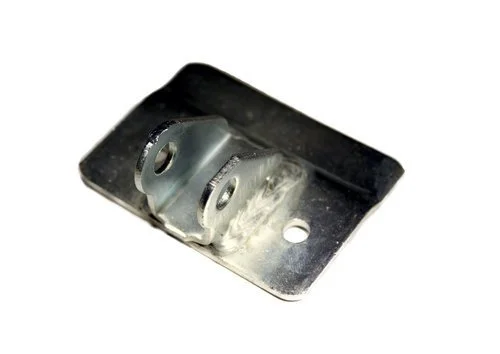

    Cable Anchor Whiting Zinc

  • A metal mounting bracket with two holes, used for securing or supporting objects.

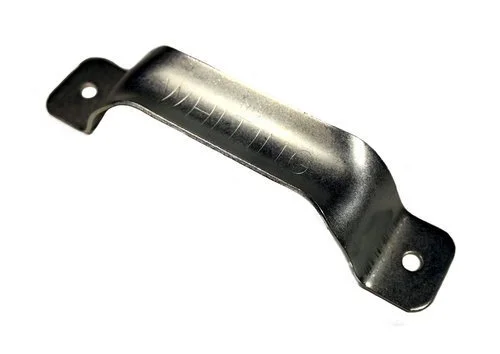

    Grab Handle Whiting Zinc

  • Close-up of a metal push pin against a white background.

    All Steel Roller St St Shaft

  • A metal slide latch with multiple screws and a round handle, used for securing doors or gates.

    Bottom Roller Holder

  • Two metal brackets with bolts and holes, isolated on a white background.

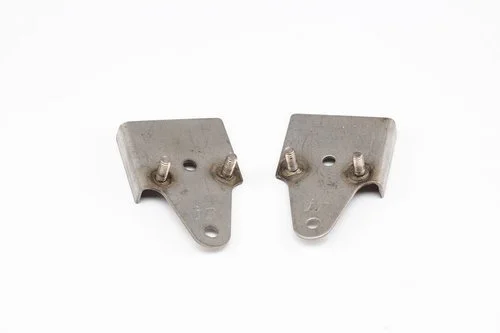

    Anti-Lozenge Brackets
