Pneumatic Systems

Our pneumatic systems are designed with both ease of use and safety in mind. An alternative to a manually operated door, our pneumatic shutters open and close using push button controls.

The controls can be installed in the vehicle rear frame or in a remote-control box. A lockable box is available as an optional extra.

All systems have an internal release (push button control) as standard, as well as external controls.

FITTING

    • Roof mounted cylinder

    • Control box - Pneumatic  or Electro Pneumatic

    • All pipework.

    • All push buttons, if required

    • All unions/connections.

    • Clevis to attach door to piston.

    • Modified/strengthened top panel

    • Open and close at the touch of a button

    • Quiet, smooth operation

    • No exterior handles

    • Built-in safety operation

    • Suitable to -40 degrees Celsius

    • Low maintenance

    • Long life

    • Two handed operation for additional safety

    • Lockable remote control box

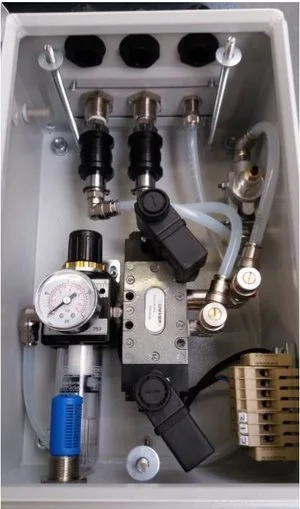

  • Close-up of a pneumatic control box with valves, gauges, and tubing for controlling air pressure.

    Electro - Pneumatic Control Box 12/24V

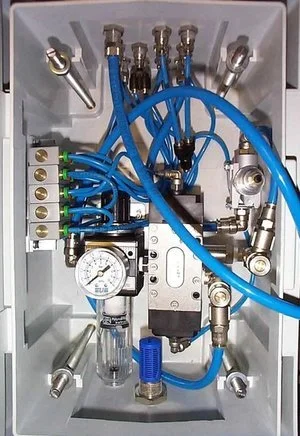

  • Electrical or pneumatic control box with blue hoses, pressure gauge, and various fittings and connectors inside a metal enclosure.

    Pneumatic Control Box

  • A diagram showing different types of coaxial cable connectors numbered 1 to 11, with labels 'close' and 'open' at the bottom.

    Control Box Manifold

  • A mechanical device with metal and plastic parts, including a brass fitting, bolts, and connection ports, likely a component of industrial equipment.

    Pneumatic Push Button Jet Value

  • Auto part, possibly a camshaft timing sensor or similar mechanical component.

    Push Button Contact Block N/O

  • Three rubber stamps with red, green, and black ink pads arranged in a row.

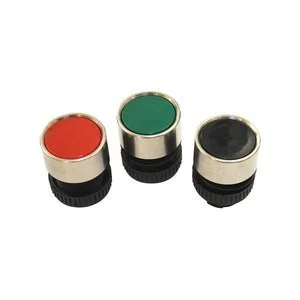

    Push Buttons For Jet Valve

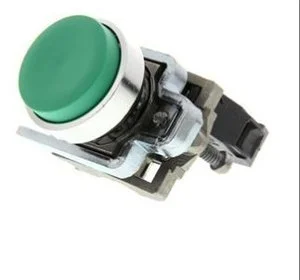

  • Close-up of a green push button switch with metallic trim.

    Push Button For Contact Block

  • Clear glass ashtray with a circular shape and raised edges.

    Silicon Boot For Push Buttons

  • Close-up of a green emergency stop button on a control panel.

    Electric Push Button Assembly

  • Metal valve with a threaded end and a lever handle

    Clevis

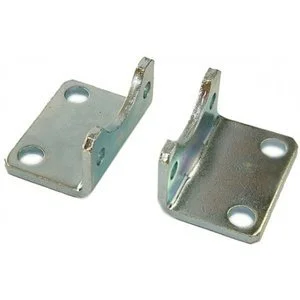

  • Two metal L-shaped brackets with four holes, used for mounting or supporting.

    Cylinder Mounting Feet

  • Two different types of plumbing or pneumatic fittings, one with a black rubber gasket and the other with a white plastic body and black gasket.

    Push Fit Fittings
